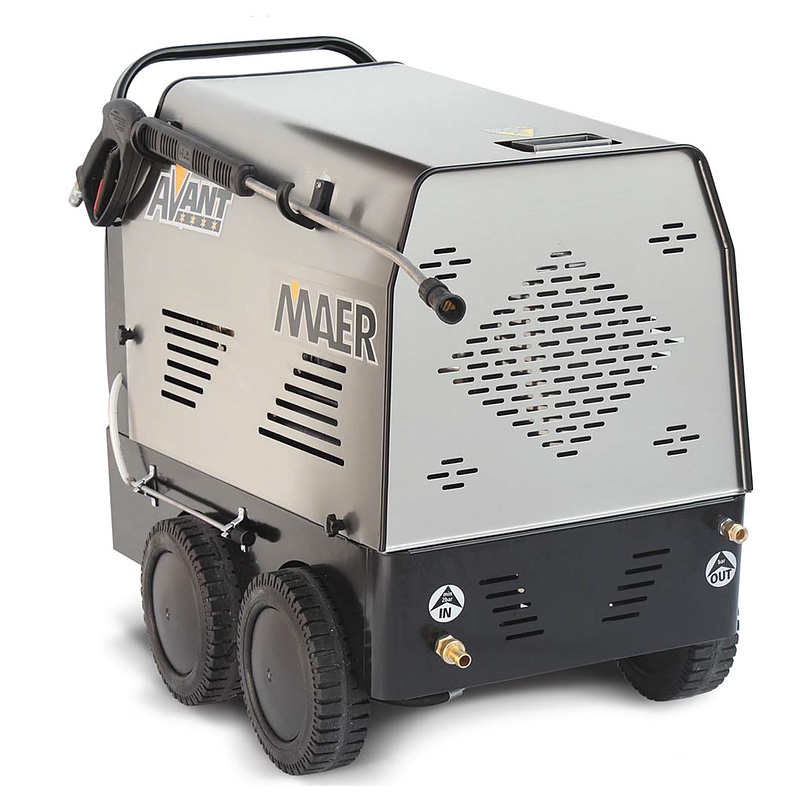

The MAER AVANT 200/21 machine has the following features:
PRESSURE | FLOW RATE | MOTOR | VOLTAGE |
200 bar | 21 lt/min | 7,5 kW – 10HP | 400V |
- Vertical boiler with a double coil 3/8”, made by MAER, with refractory cement
- Burner with independent motor
- Flame control with photocell
- Drop to drop system (leakage control)
- Water tank complete with floater
- Device on the control board to reduce the pressure and water delivery
- Device on the control panel for the chemical suction on high pressure
- Thermostat regulation (temperature 30°-140°)
- 2 pressure switch and nr. 1 flow switch
- Safety and bypass valves
- Waterproof electric panel at 24V
- Transformer 230-400-24 V
- Delayed total stop electronic board
- Stop boiler device for lack of fuel
- Pressure gauge for pressure control
- Water and fuel filters
- 30 lt fuel tank
- Double steel plated high pressure hose, 10 mt length
- 120 cm service lance with professional gun
- Stainless steel water
